Size chart

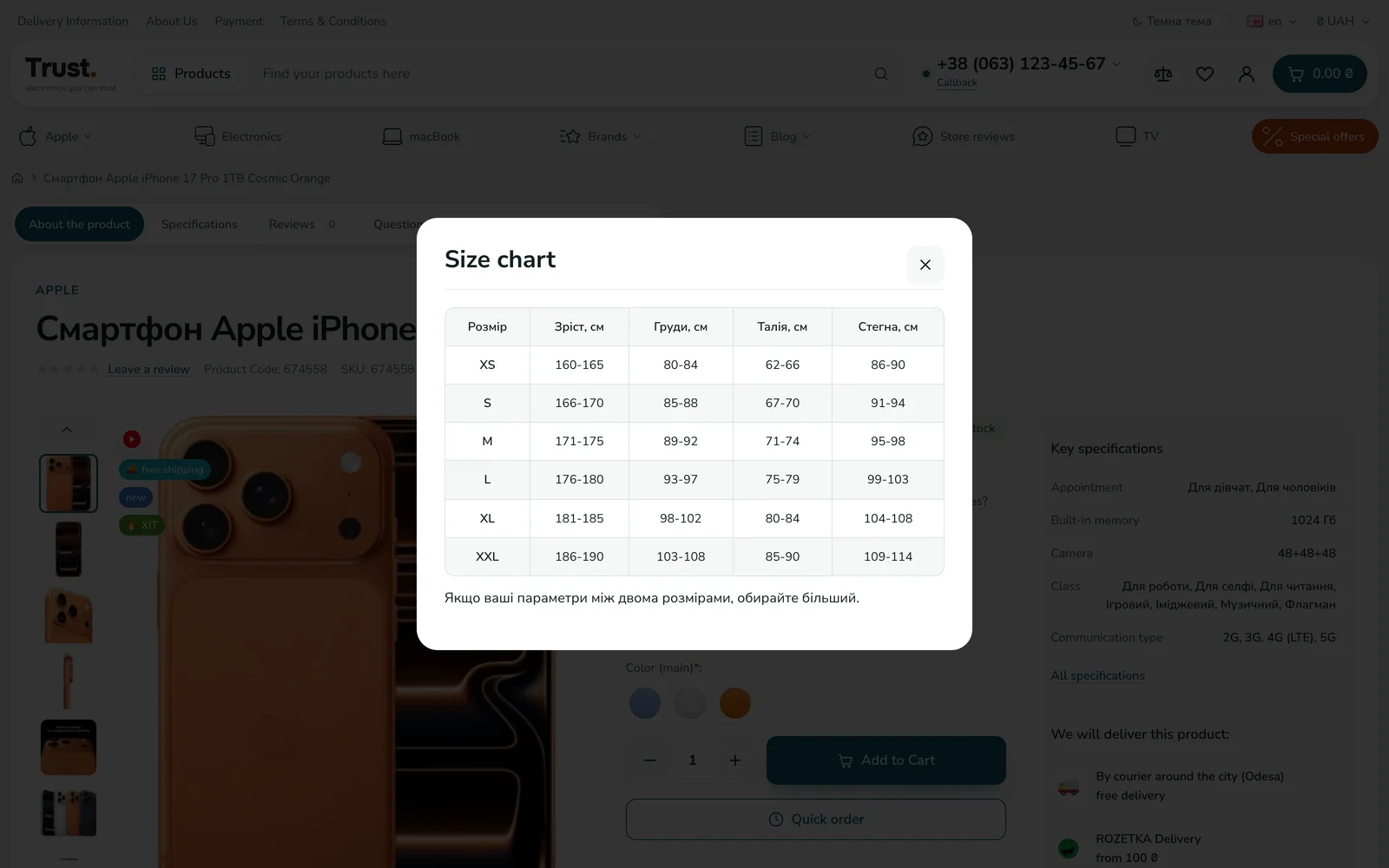

The module adds a link to the product page that opens a window with a reference table or image: a clothing and shoe size chart, “Fits” for accessories, a compatibility table, a selection guide.

Open Octemplates → Size chart.

How it works

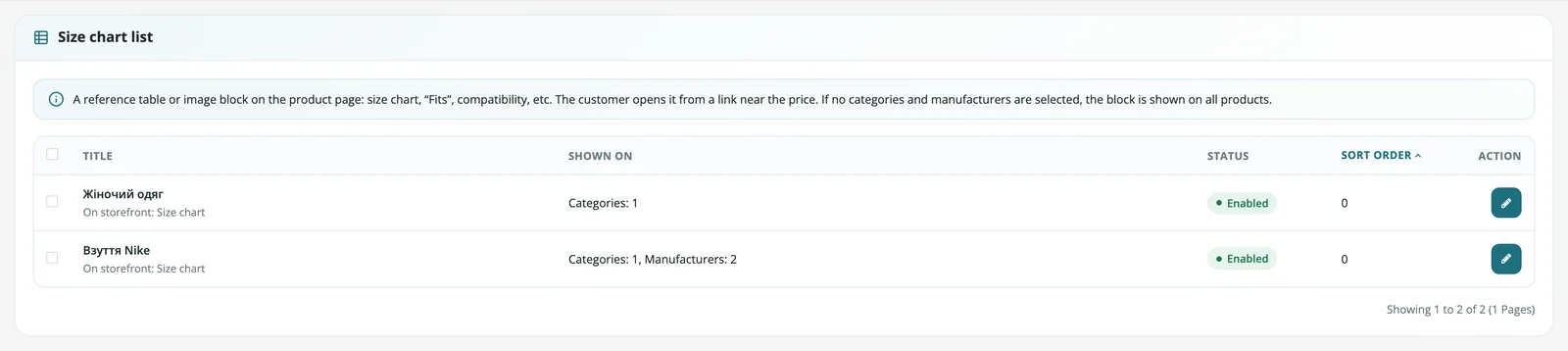

1. Create an entry

   In the list click “Add”. Each entry is one table or image, its title and display conditions.



2. Fill in the content

   The link title, image and table — for each language.

3. Choose where to show it

   For which categories and manufacturers. None selected — the entry is shown on all products.

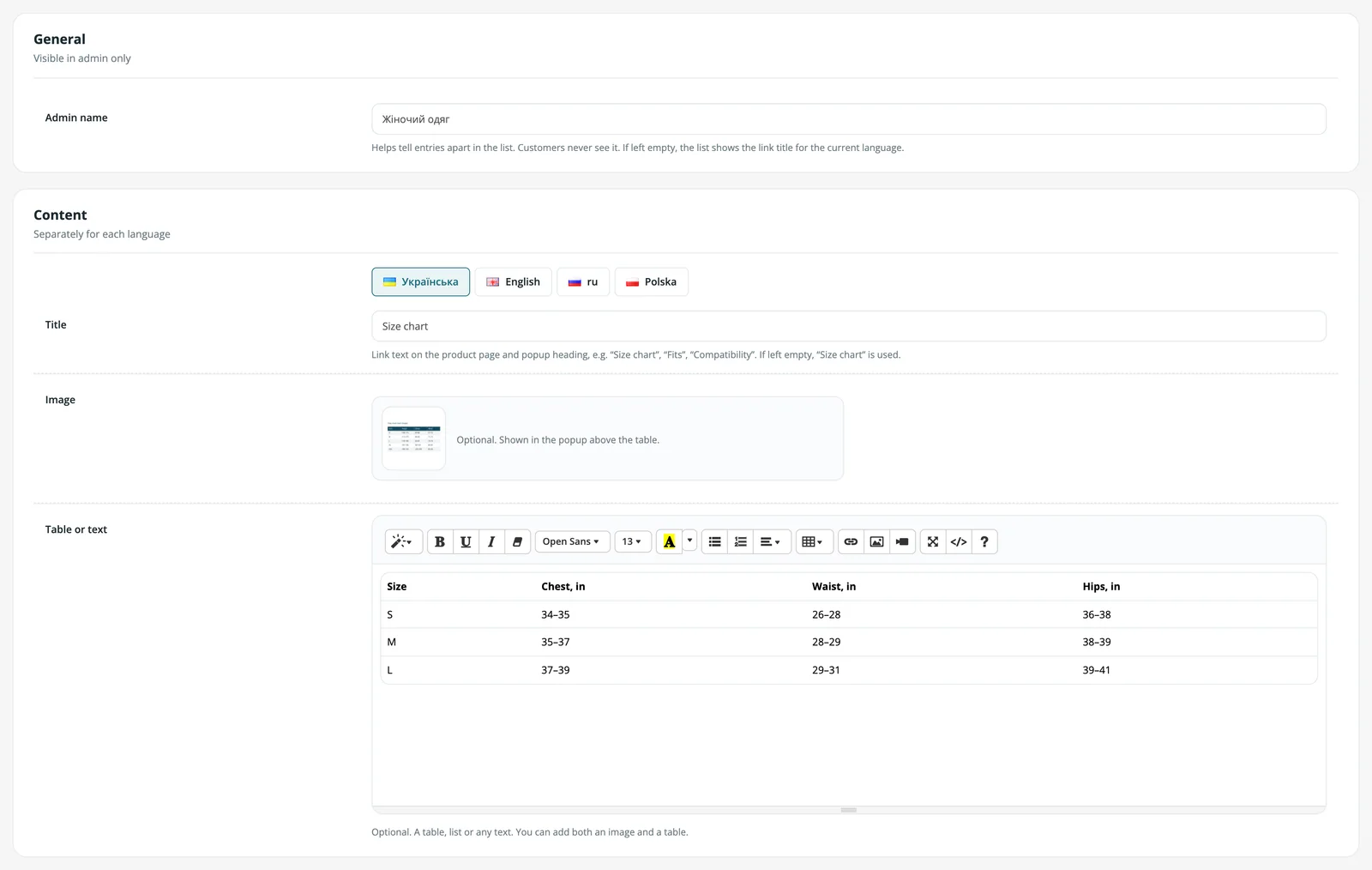

Entry settings

General and content

Field	What to enter
Admin name	To tell entries apart in the list: “Women’s clothing”, “Nike shoes”. Customers don’t see it. Empty — the link title is used in the list.
Title	The link text on the product page and the window title for each language: “Size chart”, “Fits”, “Compatibility”. Empty — “Size chart”.
Image	Optional. Shown in the window above the table.
Table or text	Optional. A table, list or any text. You can add both an image and a table.

It’s convenient to paste a table in the editor’s code view (</>). Example:

<table>
<tr><th>Size</th><th>Chest, in</th><th>Waist, in</th></tr>
<tr><td>S</td><td>34–35</td><td>26–28</td></tr>
<tr><td>M</td><td>35–37</td><td>28–29</td></tr>
</table>

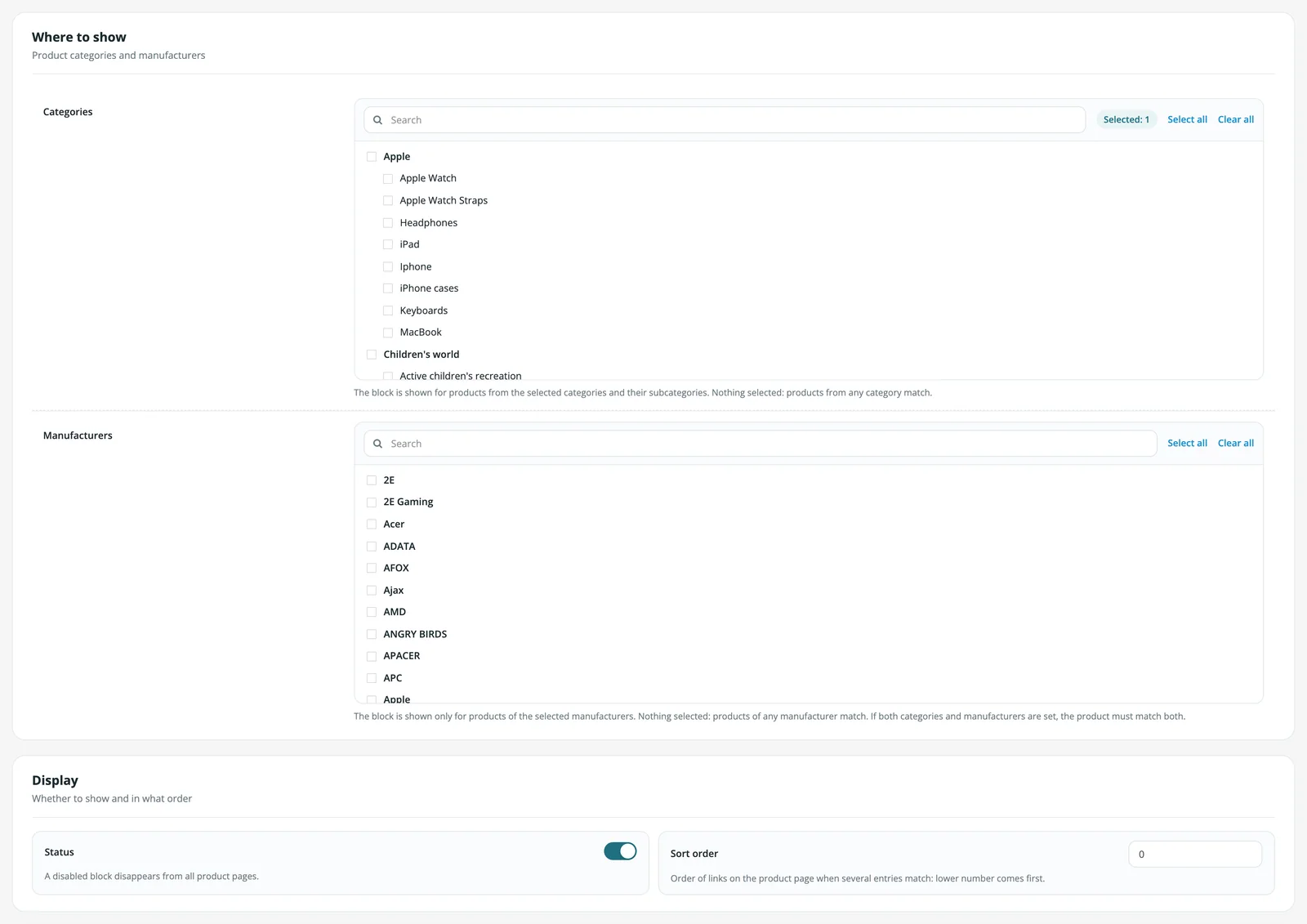

Where to show and display

Field	What it does
Categories	The entry is shown for products from the selected categories and their subcategories. None selected — for products from any category.
Manufacturers	Only for products of the selected manufacturers. None selected — for any manufacturer.
Status	A disabled entry disappears from all product pages.
Sort order	The order of links if several entries fit: a lower number — further left and higher.
